M8 Male 4-Pin A-Coded Connector Screw Connection IP67

Name: M8 Male 4Pin ACoded Connector Screw Connection IP67
Brand: KRONZ
Price: 1 USD

China M8 Male 4-Pin A-Coded Connector Screw Connection IP67 factory

Model Number : H0804MV-0

Place of Origin : Guangdong, China

MOQ : 50 pieces

Price : Negotiable

Brand Name : KRONZ

Certification : CE

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 100000 pieces per month

Delivery Time : 5-8 working days

Packaging Details : Polybag packing

Material : Brass,gold-plated

Product Name : M8 Metal Connector

Color : Siliver

IP rate : IP67

Contact Resistance : ≤ 5mΩ

Ambient Temperature : -25~+85℃

Connection Method : Screw Connection

Contact Now

M8 Field-wirable Assembly Connector Straight Male 4 Pin A Code Full Metal

This M8 Straight Male Connector features a 4-pin A-coded interface and a rugged full-metal housing for superior mechanical strength and EMI shielding. Designed with a screw connection termination, it ensures secure, vibration-resistant wiring for demanding industrial environments.

Features:

Connector Type: M8 Male, 4-Pin, A-Coded
Orientation: Straight
Housing: Full metal for enhanced durability and shielding
Termination: Screw connection for easy field assembly
Applications: Industrial sensors, actuators, robotics, and automation systems
Standard Compliance: IEC 61076-2-104

Technical Parameters

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickle-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	3A	60V	Straight	3.5-5mm	H0804MV-0

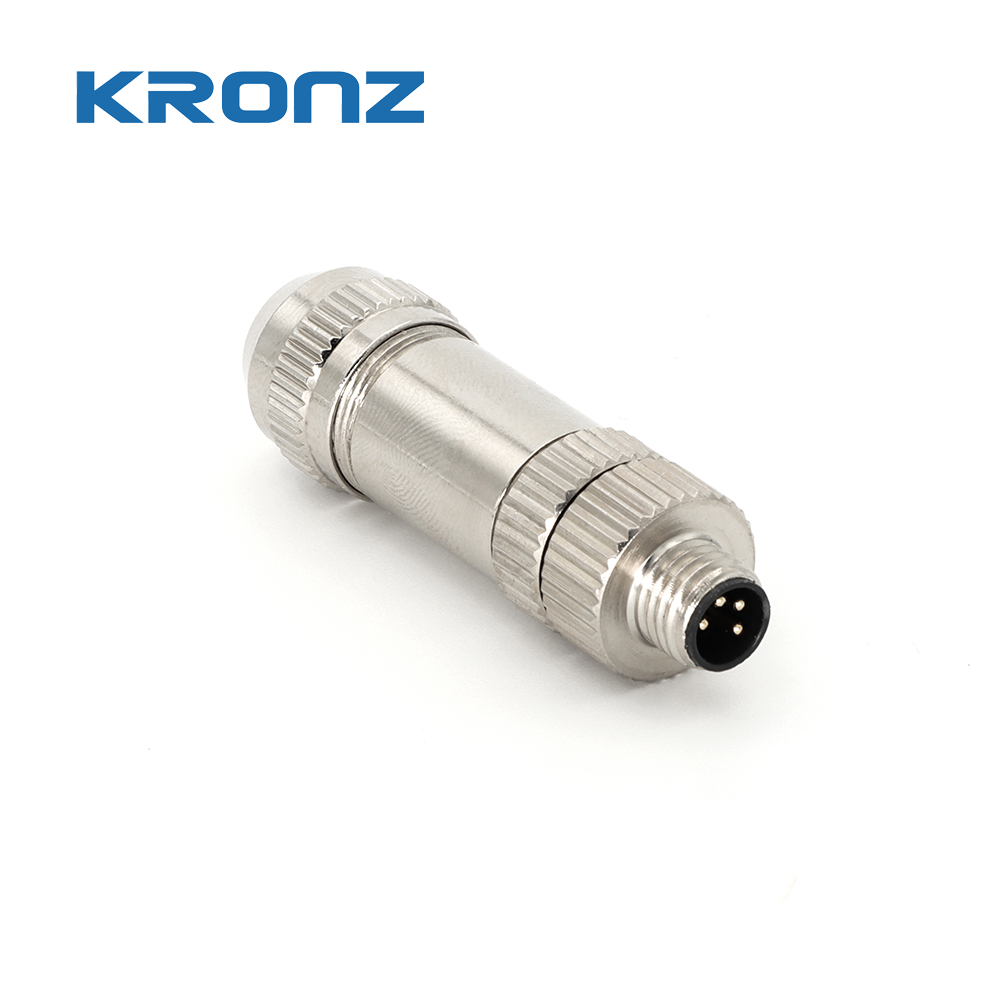

Product Images

M8 Male 4-Pin A-Coded Connector Screw Connection IP67

Product Dimension Drawing

M8 Male 4-Pin A-Coded Connector Screw Connection IP67

Company Profile

M8 Male 4-Pin A-Coded Connector Screw Connection IP67
